State and Ledger Model

States represent the current agreed configuration of protocol entities. The state model defines what information a state contains, how states are identified and versioned, and how states are represented for off-chain and on-chain use.

Common State Fields

All protocol states share:

Field	Description
EntityId	32-byte unique identifier of the entity this state belongs to.
Version	64-bit unsigned integer, monotonically increasing.

In addition to these common fields, each state contains entity-specific data defined by the respective entity specification.

State Identification and Versioning

Each state is identified by the combination of its entity identifier and version number.

Rules:

• The entity identifier is derived from the entity definition and is immutable.
• The version MUST start at 1 for the initial state.
• Versions are strictly increasing.
• Off-chain state advancement requires each new version to be exactly the previous version plus one.
• On-chain enforcement requires only that the submitted version be strictly greater than the currently recorded on-chain version.

Channel State

The channel state is the primary protocol state. It represents the current configuration of a channel.

Field	Description
ChannelId	32-byte identifier derived from the channel definition.
Metadata	32-byte hash of channel metadata.
Version	64-bit unsigned integer state version.
HomeLedger	Asset allocations on the home chain.
NonHomeLedger	Asset allocations on the non-home chain.
Transition	Operation that produced this state.
UserSig	User signature for the state.
NodeSig	Node signature for the state.

The channel identifier encodes a protocol version byte as its first byte, followed by the hash of the channel definition parameters.

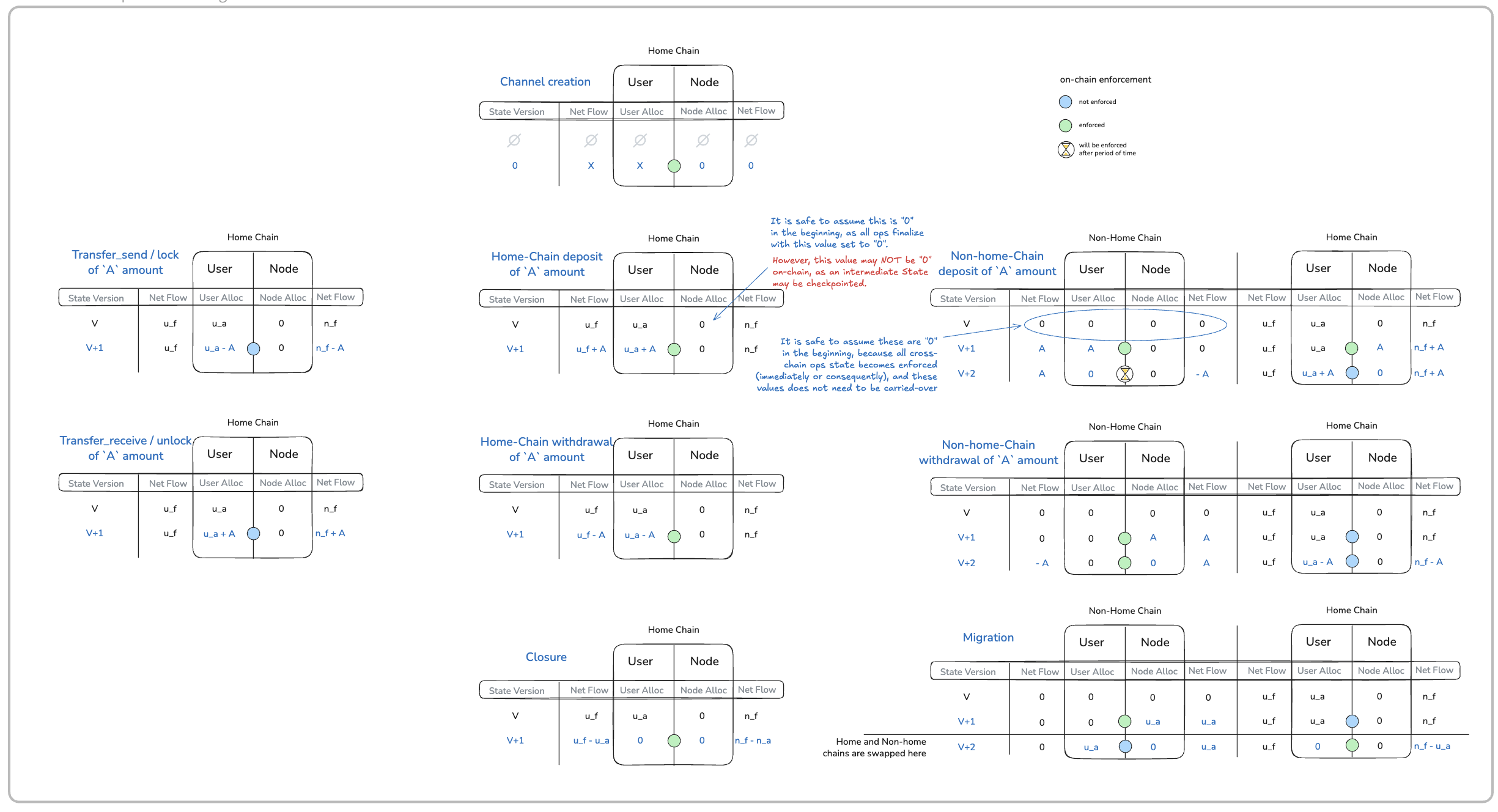

Ledger

A ledger records asset allocations for a specific blockchain within a channel. Each channel state contains exactly two ledgers: a home ledger and a non-home ledger.

Field	Description
ChainId	Identifier of the blockchain this ledger is associated with.
Token	Token contract address on this chain.
Decimals	Decimal precision of the token on this chain.
UserAllocation	Amount allocated to the User.
UserNetFlow	Cumulative net flow for the User; MAY be negative.
NodeAllocation	Amount allocated to the Node.
NodeNetFlow	Cumulative net flow for the Node; MAY be negative.

The ledger invariant MUST hold at all times:

UserAllocation + NodeAllocation == UserNetFlow + NodeNetFlow

All allocation values MUST be non-negative. Net flow values MAY be negative, reflecting outbound transfers or withdrawals that exceed inbound flows.

Empty Non-Home Ledger

When a channel state does not involve cross-chain operations, the non-home ledger MUST be empty.

Field	Empty value
ChainId	0
Token	Zero address (0x0000...0000)
Decimals	0
UserAllocation	0
UserNetFlow	0
NodeAllocation	0
NodeNetFlow	0

An empty non-home ledger is structurally present but zeroed. A non-home ledger with metadata, such as non-zero ChainId or Token, but zero balances is NOT considered empty.

Off-Chain Representation

The off-chain representation is the primary operational format of a channel state. It is exchanged between participants during state advancement and is the representation that is signed.

The off-chain representation contains all channel state fields directly, including full transition data: type, transaction identifier, account identifier, and amount.

Enforcement Representation

The off-chain and enforcement representations depict the same logical state. The enforcement representation is derived deterministically from the off-chain representation.

Preserved fields:

• Version.
• Home and non-home ledger fields: ChainId, Token, Decimals, UserAllocation, UserNetFlow, NodeAllocation, NodeNetFlow.

Derived fields:

• Intent: derived from transition type through the intent mapping table.
• MetadataHash: Keccak-256 hash of ABI-encoded transition data: type, transaction identifier, account identifier, and amount.

The enforcement representation is constructed as:

SignablePayload = AbiEncode(ChannelId, AbiEncode(Version, Intent, MetadataHash, HomeLedger, NonHomeLedger))

Because this mapping is deterministic, signatures over off-chain state are valid for enforcement and vice versa.

Intent Mapping

On-chain intent	Protocol operation	Meaning
OPERATE	transfer_send	Sender-side off-chain transfer.
OPERATE	transfer_receive	Receiver-side off-chain transfer.
OPERATE	commit	Move channel funds into an app session or extension.
OPERATE	release	Return app-session or extension funds to the channel.
OPERATE	acknowledgement	Acknowledge a Node-issued pending state.
CLOSE	finalize	Finalize and close the channel.
DEPOSIT	home_deposit	Deposit on the home chain.
WITHDRAW	home_withdrawal	Withdraw on the home chain.
INITIATE_ESCROW_DEPOSIT	initiate_escrow_deposit	Escrow deposit initiate.
FINALIZE_ESCROW_DEPOSIT	finalize_escrow_deposit	Escrow deposit finalize or complete.
INITIATE_ESCROW_WITHDRAWAL	initiate_escrow_withdrawal	Escrow withdrawal initiate.
FINALIZE_ESCROW_WITHDRAWAL	finalize_escrow_withdrawal	Escrow withdrawal finalize or complete.
INITIATE_MIGRATION	initiate_migration	Home-chain migration initiate.
FINALIZE_MIGRATION	finalize_migration	Home-chain migration finalize.

Transitions that map to OPERATE do not require on-chain enforcement under normal operation.

Escrow and migration operations are included for protocol accuracy. The protocol defines them, but the current Nitronode public app-builder workflow does not implement them yet.

Transition Field

Each state update includes a transition describing the operation that produced the new state.

Field	Description
Type	Transition type identifier.
TxId	Transaction identifier hash.
AccountId	Context-dependent account identifier; semantics vary by transition type.
Amount	Amount involved in the transition.

State Consistency Rules

State validity requirements differ between off-chain advancement and on-chain enforcement. In both contexts, these invariants MUST hold:

• The entity identifier MUST match the entity definition.
• The version MUST be strictly greater than the previously accepted version.
• Ledger invariants MUST be satisfied: allocations equal net flows, and allocation values are non-negative.
